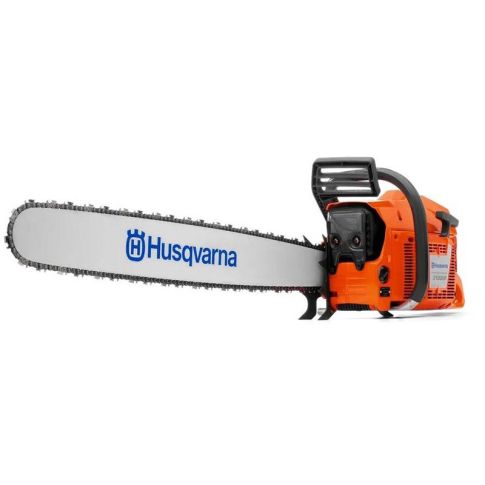

Husqvarna 3120 XP Chainsaw (Powerhead Only)

Powerhead Only

Husqvarna's largest chainsaw is one of the most powerful in the world. The primary applications for the 3120 XP® are extreme logging, portable saw mills and stump work. This saw is designed to pull the chain on our longest bars. Like all Husqvarna chainsaws, the 3120 XP® has a superior power-to-weight ratio. Thanks to Effortless Starting®, LowVib™ and other premium features, this heavy-duty chainsaw is surprisingly easy to start and operate. Note: Saw power head only, guide bars sold separately. Maximum recommended bar length 42 in.

• Adjustable oil pump: Adjustable chain oil pump
• Quick-release air filter: Quick-release air filter
• Magnesium crankcase: Magnesium crankcase designed for professional use
• Three-piece crankshaft: Maximum durability for tough applications
• LowVib®: LowVib® sparing the user's arms and hands
• Smart Start®: Smart Start® for easy starting
• Felling marks: Felling marks for correct felling direction
• Inertia activated chain brake: Increased safety, inertia activated chain brake

• Power output: 8.31 hp
• Cylinder displacement: 118.8 cm³
• Maximum power speed: 9,000 rpm
• Idling speed: 2,500 rpm
• Torque, max.: 7.7 Nm
• Torque, max. at rpm: 6,000 rpm
• Clutch engagement speed (±120): 3,400 rpm
• Fuel consumption: 570 g/kWh
• Fuel consumption: 7.7 lbs/h
• Spark plug: Champion RCJ7Y, NGK BPMR7A
• Electrode gap: 0.02 in
• Ignition module air gap: 0.01 in
• Oil pump type: Automatic
• Oil pump capacity Max: 54 ml/min
• Oil pump capacity Min: 30 ml/min

• Recommended bar length, min-max: 24-42 in
• Chain type: --
• Gauge: .063"
• Pitch: .404"
• Sprocket type: Rim 7

• Weight (excl. cutting equipment): 22.9 lbs

• Lubricant type: Husqvarna or equiv. at 50:1
• Oil tank volume: 1.48 US pint

• Sound power level, guaranteed (LWA): 116 dB(A)
• Sound power level, measured: 115 dB(A)
• Sound pressure level at operators ear: 102 dB(A)

• Equivalent vibration level (ahv, eq) front handle: 6.7 m/s²
• Equivalent vibration level (ahv, eq) rear handle: 7.8 m/s²
