Husqvarna Handheld Equipment Parts Fast Guide
Husqvarna Handheld Equipment Parts Fast Guide

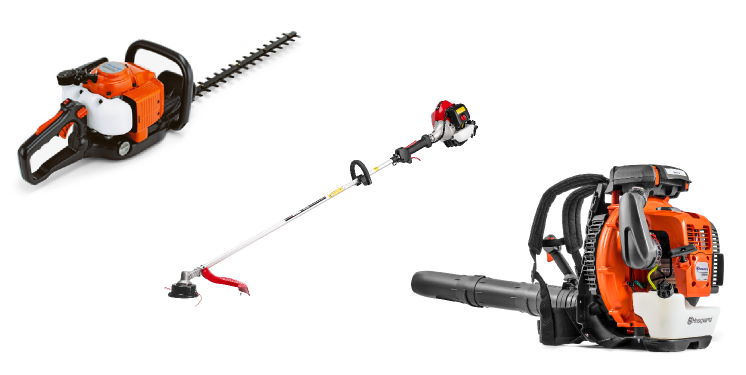

Using your Husqvarna handheld model # with this guide will help you find commonly replaced Husqvarna handheld parts. Click the name of the part you are looking for on the right chart & you will be taken to that parts section on the left chart.
- Spark Plug: Supplies the spark that ignites the air/fuel mixture, creating the explosion that makes your engine produce power
- Air Filter (Inner and Outer): Prevent saw dust, debris and dirt from getting into the internal parts of the chainsaw engine .
- Fuel Filter: Filter in the fuel line that screens out dirt and rust particles from the fuel allowing your chainsaw to start easily.
- Ignition Module: An electronic switch that transfers signals to the ignition coil that makes the spark plugs fire and start your engine.
- Ignition Switch: When engaged, the switches ground the ignition coil to the engine causing the spark generation to cease.
- Fuel/Oil Tank Cap: Covers filler inlet.
- Carburetor: Regulates fuel and air mixture to allow for proper combustion.
- Clutch Assembly: Power take off from crankshaft to cutting equipment.
- Starter Cord: Wraps around starter pulley to allow for engine start.
- Starter Handle: T Grip handle to allow for pulling cord
- Recoil Assembly: complete assembly including starter cord, recoil spring and recoil housing
Sparkplug:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 129/ RJ, 322HD60, 329L, 522HDR75S | Spark Plug | 503235401 |
| 430LS | Spark Plug | 528074001 |
| 555FX | Spark Plug | 577484001 |
| 322L, 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 525BX,525PT5S, 525P4S, 525DEPS | Spark Plug | 584968101 |
| 522L, 535LS/LST/LK, 336FR, 125B/BVX, 525HF3S, 525LS MKII,525LSTMKII | Spark Plug | 590710101 |
| 122C, 129C, 129L/LDX, 325L, 122HD45/HD60, 325HE3/HE4,522HS/HD | Spark Plug | 590710201 |
| 545FR/FX | Spark Plug | 590843801 |
| 130BT, 150BT, 350BT/BF, 360BT, 560BT/BF, 570BT/BF,580BT/BFMKII | Spark Plug | 590844001 |
| 324L, 524LK | Spark Plug | 590844301 |
| 580BT/BFMKIII | Spark Plug | 506615101 |
| 150BT (2022) | Spark Plug | 503235111 |
| 128LX, 130C, 130L, 330LK | Spark Plug | 503235112 |
Air Filter:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 555FX | Inner Air Filter | 537410802 |
| 555FX | Outer Air Filter | 505031003 |
| 570BT/BF, 580BT/BFMKII, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII | Inner Air Filter | 544271501 |
| 570BT/BF, 580BT/BFMKII, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII | Outer Air Filter | 544271601 |
| 322L, 522L, 525L/LS/LST/LK, 525ES/ECS, 525HF3S 592XP, 592XPG | Inner Air Filter | 576401601 |
| 322L, 522L, 525L/LS/LST/LK, 525ES/ECS, 525HF3S | Outer Air Filter | 577851501 |
| 525RX/RJX | Inner Air Filter | 581047401 |
| 525RX/RJX | Outer Air Filter | 577851501 |
| 325HE3/HE4, 525PT5S, 525P4S, 525DEPS | Inner Air Filter | 581451801 |
| 325HE3/HE4, 525PT5S, 525P4S, 525DEPS | Outer Air Filter | 581047401 |
| 525BX | Inner Air Filter | 585604902 |
| 525BX | Outer Air Filter | 585605001 |
| 522HS/HD, 522HDR75S | Inner Air Filter | 590040701 |
| 522HS/HD, 522HDR75S | Outer Air Filter | 590047901 |
| 525LS MKII, 525LST MKII | Inner Air Filter | 597719601 |
| 525LS MKII, 525LST MKII | Outer Air Filter | 597719701 |
| 128LX | Air Filter | 530150253 |
| 130C, 130L, 330LK | Air Filter | 544271601 |
| 150BT (2022) | Air Filter | 535316301 |
| 560BT/BF | Air Filter | 502844401 |
| 150BT, 350BT/BF, 360BT | Air Filter | 502844402 |
| 130BT | Air Filter | 504115301 |
| 122HD45/HD60, 322HD60 | Air Filter | 523013401 |
| 324L, 524LK | Air Filter | 531008693 |
Air Filter:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 535LS/LST/LK | Air Filter | 537337201 |
| 122C, 129C, 129L/LDX, 325L, 129R/RJ, 329L | Air Filter | 574242701 |
| 336FR | Air Filter | 576215301 |
| 430LS | Air Filter | 587930701 |
| 125B/BVX | Air Filter | 597797901 |
| 545FR | Air Filter | 574668003 |
| 545FX | Air Filter | 537410804 |
Fuel Filter:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 430LS | Fuel Filter | 506614601 |
| 150BT, 350BT/BF, 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII | Fuel Filter | 506742601 |
| 324L, 524LK | Fuel Filter | 531008709 |
| 122C, 129C, 129L/LDX, 325L, 329L, 129R/RJ, 122HD45/HD60,322HD60, 522HS/HD, 522HDR75S | Fuel Filter | 574603901 |
| 128LX, 130C, 130L, 330LK | Fuel Filter | 577167201 |
| 525LS MKII, 525LST MKII | Fuel Filter | 591375401 |
| 150BT (2022) | Fuel Filter | 531147179 |
| 322L, 522L, 525L/LS/LST/LK, 535LS/LST/LK, 525RX/RJX, 336FR, 545FR/FX, 555FX, 525ES/ECS, 125B/BVX, 525BX, 130BT, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S, 580BT MKIII, 580BF MKIII, 525DEPS | Fuel Filter | 591375401 |
Ignition Module:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 130BT | Ignition Module | 504118401 |
| 430LS | Ignition Module | 512332001 |
| 324L, 524LK | Ignition Module | 531008714 |
| 535LS/LST/LK, 336FR | Ignition Module | 544127002 |
| 128LX | Ignition Module | 545046701 |
| 130C, 130L, 330LK | Ignition Module | 599503501 |
| 525LS MKII, 525LST MKII | Ignition Module | 597717201 |
| 150BT (2022) | Ignition Module | 531147160 |
| 580BT MKIII, 580BF MKIII | Ignition Module | 599899501 |
| 522HDR75S | Ignition Module | 585074002 |
| 555FX | Ignition Module | 576445201 |
| 545FR/FX | Ignition Module | 585073904 |
| 122HD45/HD60, 322HD60, 522HS/HD | Ignition Module | 585074002 |
| 122C | Ignition Module | 585074102 |
| 125B/BVX | Ignition Module | 585836101 |
| 522L, 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S, 525DEPS | Ignition Module | 588141501 |
| 322L | Ignition Module | 587294501 |
| 150BT, 350BT/BF | Ignition Module | 596813001 |
| 525BX | Ignition Module | 596813303 |
| 129C, 129L/LDX, 325L, 129R/RJ, 329L | Ignition Module | 597383401 |
| 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII | Ignition Module | 598472001 |
Ignition Switches:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 324L, 524LK | Ignition Switch | 503718201 |
| 325L | Ignition Switch | 503940301 |
| 430LS | Ignition Switch | 521851601 |
| 322L, 522L, 525L/LS/LST/LK, 535LS/LST/LK, 129R/RJ, 525RX/RJX, 336FR, 545FR/FX, 555FX, 525ES/ECS, 525BX, 122HD45/HD60, 322HD60, 325HE3/HE4, 522HS/HD, 525HF3S, 525PT5S, 525P4S, 525LS MKII, 525LST MKII, 522HDR75S, 525DEPS | Ignition Switch | 537419001 |
| 125B/BVX | Ignition Switch | 545049301 |
| 122C, 129C, 129L/LDX, 329L, 128LX, 130C, 130L, 330LK | Ignition Switch | 545049309 |
Ignition Switches:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 150BT (2022) | Ignition Switch Kit | 531147175 |
| 350BT/BF | Ignition Switch (BF Only) | 504554601 |
| 560BF, 570BF, 580BFMKII, 580BF MKIII | Ignition Switch (BF Only) | 576562401 |
Fuel/Oil Tank Cap:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 545FR/FX | Fuel Tank Cap | 590324602 |
| 322HD60 | Fuel Tank Cap | 504113203 |
| 350BT/BF | Fuel Tank Cap | 504117701 |
| 430LS | Fuel Tank Cap | 505309601 |
| 324L, 524LK | Fuel Tank Cap | 544843201 |
| 122C, 336FR | Fuel Tank Cap | 544889701 |
| 128LX | Fuel Tank Cap | 578931503 |
| 535LS/LST/LK | Fuel Tank Cap | 590324802 |
| 329L | Fuel Tank Cap | 578931504 |
| 125B/BVX, 130BT, 150BT | Fuel Tank Cap | 578931503 |
| 129C, 129L/LDX, 325L, 129R/RJ, 130C, 130L, 330LK | Fuel Tank Cap | 578931504 |
| 525LS MKII, 525LST MKII, 525DEPS | Fuel Tank Cap | 579645715 |
| 150BT (2022) | Fuel Tank Cap | 531147176 |
| 322L, 522L, 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 525BX, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S | Fuel Tank Cap | 579645715 |
| 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII | Fuel Tank Cap | 590324501 |
| 555FX, 122HD45/HD60, 522HS/HD, 522HDR75S | Fuel Tank Cap | 504113201 |
Carburetor:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 525BX | Carburetor | 501716903 |
| 130BT | Carburetor | 504116101 |
| 128LX | Carburetor | 545081848 |
| 130C, 130L, 330LK | Carburetor | 531127910 |
| 525LS MKII, 525LST MKII | Carburetor | 597697302 |
| 150BT (2022) | Carburetor | 531147180 |
| 430LS | Carburetor | 528075501 |
| 324L, 524LK | Carburetor | 531008681 |
| 129C, 129L/LDX, 325L, 329L, 129R/RJ | Carburetor | 545008097 |
| 336FR | Carburetor | 575729001 |
| 560BT/BF | Carburetor | 581155801 |
| 322L, 522L | Carburetor | 577203204 |
| 545FR/FX | Carburetor | 580803901 |
| 150BT | Carburetor | 581155001 |
| 360BT | Carburetor | 581155801 |
| 570BT/BF | Carburetor | 581156101 |
| 350BT/BF | Carburetor | 581156601 |
| 535LS/LST/LK | Carburetor | 581167501 |
| 580BT/BFMKII, 580BT MKIII, 580BF MKIII 525HF3S, 525PT5S, 525P4S, 525DEPS | Carburetor | 581177001 |
| 122C | Carburetor | 581734301 |
| 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S, 525DEPS | Carburetor | 584901401 |
| 555FX | Carburetor | 586108801 |
| 125B/BVX | Spark Plug | 590460102 |
| 122HD45/HD60,322HD60, 522HS/HD, 522HDR75S | Carburetor | 596658301 |
Clutch Assembly:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 430LS | Clutch Assembly | 515389101 |
| 128LX | Clutch Assembly | 530055122 |
| 122C | Clutch Assembly | 525593701 |
| 324L, 524LK | Clutch Assembly | 531008655 |
| 325HE3/HE4, 525HF3S | Clutch Assembly | 537040102 |
| 535LS/LST/LK, 336FR | Clutch Assembly | 537340401 |
| 129R/RJ, 130C, 130L, 330LK | Clutch Assembly | 575762203 |
| 129C, 129L/LDX, 325L | Clutch Assembly | 587126401 |
| 122HD45/HD60 | Clutch Assembly | 578439001 |
| 555FX | Clutch Assembly | 579164002 |
| 329L | Clutch Assembly | 580446601 |
| 1322HD60, 522HS/HD, 522HDR75S | Clutch Assembly | 582193101 |
| 322L, 522L, 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 525PT5S, 525P4S, 525LS MKII, 525LST MKII, 525DEPS | Clutch Assembly | 585834701 |
| 545FR/FX | Clutch Assembly | 594512301 |
| 125B/BVX, 525BX, 130BT, 150BT, 350BT/BF, 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 150BT (2022), 580BT MKIII, 580BF MKIII | Not applicable for these models | Not applicable for these models |
Starter Handle:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 150BT, 350BT/BF | Starter Handle | 502843201 |
| 535LS/LST/LK | Starter Handle | 503543901 |
| 130BT | Starter Handle | 505303401 |
| 430LS | Starter Handle | 506614701 |
| 324L, 524LK | Starter Handle | 537008401 |
| 336FR, 545FR/FX, 555FX, 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII | Starter Handle | 537232501 |
| 125B/BVX, 128LX | Starter Handle | 545043204 |
| 122C | Starter Handle | 574268701 |
| 525LS MKII, 525LST MKII | Starter Handle | 596694601 |
| 150BT (2022) | Starter Handle Kit | 531147159 |
| 129C, 129L/LDX, 322L, 325L, 329L, 522L, 525L/LS/LST/LK, 129R/RJ, 525RX/RJX, 525ES/ECS, 525BX, 122HD45/HD60, 322HD60, 325HE3/HE4, 522HS/HD, 525HF3S, 525PT5S, 525P4S, 130C, 130L, 330LK, 522HDR75S, 525DEPS | Starter Handle | 575489501 |
Starter Cord:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 150BT, 350BT/BF | Starter Cord | 502843501 |
| 130BT, 430LS | Starter Cord | 504114901 |
| 535LS/LST/LK, 336FR, 545FR/FX, 555FX | Starter Cord | 505305125 |
| 525BX | Starter Cord | 522645101 |
| 324L, 524LK | Starter Cord | 531008649 |
| 129C, 129L/LDX, 325L, 329L, 129R/RJ, 128LX, 130C, 130L, 330LK | Starter Cord | 545008079 |
| 125B/BVX | Starter Cord | 545081817 |
| 525LS MKII, 525LST MKII | Starter Cord | 596248901 |
| 122C | Starter Cord | 574286901 |
| 122HD45/HD60, 322HD60, 522HS/HD, 522HDR75S | Starter Cord | 574286902 |
| 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII | Starter Cord | 577053101 |
| 322L, 522L, 525RX/RJX, 525DEPS | Starter Cord | 577848701 |
| 525L/LS/LST/LK, 525ES/ECS, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S | Starter Cord | 579064601 |
Starter Pawl / Springs:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 122C, 129C, 129L/LDX, 325L, 329L, 535LS/LST/LK, 129R/RJ, 336FR, 128LX 336FR, 128LX |
Starter Pulley Assembly |
503873305 |
| 130C, 130L | Starter Pulley Assembly |
531127904 |
| 330LK | Starter Pulley Assembly |
531127905 |
| 525LS MKII, 525LST MKII | Starter Pulley Assembly |
596330401 |
| 524LK | Starter Pulley Assembly |
531008641 |
| 125B/BVX | Starter Pulley Assembly |
545006084 |
| 322L, 522L, 525L/LS/LST/LK, 525RX/RJX, 525ES/ECS, 325HE3/HE4, 525HF3S, 525DEPS | Starter Pulley Assembly |
581146502 |
| 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII |
Starter Pulley Assembly |
587655101 |
| 324L, 430LS, 545FR/FX, 555FX, 525BX, 130BT, 150BT, 350BT/BF, 122HD45/HD60, 322HD60, 522HS/HD, 525PT5S, 525P4S |
See IPL for individual components, not available as a kit Assembly |
See IPL for individual components, not available as a kit |
Recoil Assembly:
| Model Fit up | Part Type | Part # |
|---|---|---|
| 150BT, 350BT/BF | Recoil Assembly | 502843101 |
| 128LX | Recoil Assembly | 579063101 |
| 130C, 130L | Recoil Assembly | 531127901 |
| 330LK | Recoil Assembly | 531127902 |
| 525LS MKII, 525LST MKII | Recoil Assembly | 597718601 |
| 130BT | Recoil Assembly | 504114101 |
| 430LS | Recoil Assembly | 512328801 |
| 122HD45/HD60 | Recoil Assembly | 523009201 |
| 324L, 524LK | Recoil Assembly | 531008641 |
| 535LS/LST/LK | Recoil Assembly | 537214707 |
| 125B/BVX | Recoil Assembly | 545111701 |
| 545FR/FX | Recoil Assembly | 573960801 |
| 122C | Recoil Assembly | 574487401 |
| 555FX | Recoil Assembly | 575511701 |
| 336FR | Recoil Assembly | 575840801 |
| 525RX/RJX | Recoil Assembly | 577849201 |
| 322L, 522L | Recoil Assembly | 577942905 |
| 360BT, 560BT/BF, 570BT/BF, 580BT/BFMKII, 580BT MKIII, 580BF MKIII |
Recoil Assembly | 578283501 |
| 525L/LS/LST/LK, 525ES/ECS, 325HE3/HE4, 525HF3S, 525PT5S, 525P4S, 525DEPS |
Recoil Assembly | 596249001 |
| 129C, 129L/LDX, 325L, 329L, 129R/RJ | Recoil Assembly | 585530301 |
| 525BX | Recoil Assembly | 585604101 |
| 522HS/HD, 522HDR75S | Recoil Assembly | 597028901 |
Cant find the parts you are looking for? Use our Husqvarna Parts Lookup Diagrams
Login and Registration Form
