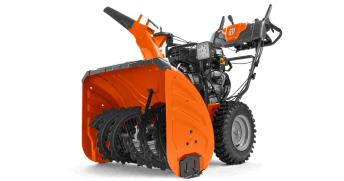

Husqvarna Snow Thrower Fast Guide
Husqvarna Snow Thrower Fast Guide
Using your Husqvarna snow thrower model # with this guide will help you find commonly replaced Husqvarna snow thrower parts. Click the name of the part you are looking for on the left chart & you will be taken to that parts section on the right chart.
- Scraper Bar: Purpose is to scrape loose this dense layer of stuck-on snow and scoop it into the auger housing, like a shovel, where it can be thrown away by the paddles
- Auger Cable: Rotating cables used to collect and throw snow in one direction.
- Skid Shoes: These small attachments act as a spacer between the bottom of your snow blower and your driveway or blowing surface to protect the housing from wear.
- Drive Cable: Connects the control lever to the engagement lever on the snowblower's auger drive system. If the auger won't engage, it's often because the auger drive cable is damaged, worn, or broken.
- Drive Belt: Self-propelled snow blowers rely on a belt drive system to turn the wheels. It is normal for belts to wear out over time and break, causing the drive system to fail.
- Impeller Belt: the auger pulls snow into the machine and feeds it into a high-speed impeller, which in turn directs it out of a discharge chute.
- Shear Bolts/Nuts: bolt that connects your auger to the auger shaft. That connection allows the augers to rotate, collect snow and send snow into the impeller fan where the snow is thrown from the chute.
- Idler Pulley (Drive): Allows movement of the drive belt.
- Idler Pulley (Impeller): allows movement of the impeller belt.
- Friction Wheels: The friction disc helps propel the snowblower forward.
- Chute Rotator Cable: Allows the operator to disperse the snow in desired direction.
- Chute Deflector Cable: Controls the distance that the snow will be dispersed.
- Safety Key: It's an added safety feature. To be able to start your snow blower, you must have the safety key inserted. If you run over something and must stop immediately, you can pull the key and the engine will stop.
Scraper Bar:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST227, ST227P, ST230 (970528802-00) | Scraper Bar | 532404932 |
| ST224, ST224P | Scraper Bar | 531064001 |
| ST230, ST230P 572XP, 365, 372XP, 390XP, 572XPG |
Scraper Bar | 532435830 |
| ST324 (970468801-00, 961930126-01, 961930126-00, 961930123-01, 970528902-00) ST424, ST424T | Scraper Bar | 585048302 |
| ST324 (970469301-00) ST327, ST427, ST427T | Scraper Bar | 585048402 |
| ST324 (961930123-00) ST327 (961930124-00), ST330, ST430, ST430T | Scraper Bar | 585048502 |
| ST124 | Scraper Bar | 595924201 |
Scraper Bar Bolts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST124 | Scraper Bar Bolts | 595924201 |
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Scraper Bar Bolts | 596039401 |
Scraper Bar Nuts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST124 | Scraper Bar Nuts | 595924201 |
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424T, ST427T, ST430T | Scraper Bar Nuts | 596039201 |
Skid Shoes:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Skid Shoes | 532407834 |
| ST224, ST224P, ST227, ST227P, ST230, ST230P | Skid Shoes | 583838801 |
| ST124 | Skid Shoes | 595924101 |
Skid Shoe Bolts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Skid Shoe Bolts | 585691701 |
| T435, 439, 555, 545II, 550XPII, 562XP, T540XP II, 562XPG, 585,592XP, 592XPG | Skid Shoe Bolts | 585802901 |
| ST224, ST224P, ST227, ST227P, ST230 , ST230, ST230P | Skid Shoe Bolts | 595924101 |
Skid Shoe Nuts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Skid Shoe Nuts | 585691301 |
| ST224, ST224P, ST227, ST227P,ST230, ST230P | Skid Shoe Nuts | 585802801 |
| ST124 | Skid Shoe Nuts | 595924101 |
Auger Cable:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Auger Cable | 579763601 |
| ST224 (961910087, 961930096) ST227P (961930097, 961910088) | Auger Cable | 581128201 |
| ST224 (961910087, 961930096), ST224P (961930122), ST227P (961930097, 961930097-03, 961930097-02, 961910088), ST230P (961910090, 96191009001, 961930101-01, 961930101-02) | Auger Cable | 587428701 |
| ST230P ( 961910090-02, 961910090-03) | Auger Cable | 588113801 |
| ST224, ST224P, ST227, ST227P, ST230, ST230P | Auger Cable | 588113802 |
| ST124 | Auger Cable | 596014901 |
Drive Cable:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST324 (961930126, 961930123, 961930123-01), 97052890, ST327(961930127) | Drive Cable | 501656602 |
| ST324( 970469301, 970468801, 961930126), ST327(970469501, 970469501, 970529002,970469401, 961930127, 961930124-00, 961930124-01), ST330 (970469701-01, 970469701-00, 970529102-00, 970469601-00, 961930128-01, 961930128-00, 961930125-01, 961960125-00) | Drive Cable | 501656603 |
| ST224 (961910087-00, 961930096-01), ST227P (961930097-01, 961910088-00), ST230P (961910090-00, 961930101-01) | Drive Cable | 581128301 |
| ST227 (970469001-00, 970468901-01), ST227P (961910088-02), ST230 (970469201- 00, 970469101-00) | Drive Cable | 582519001 |
| ST224 (961910087-02, 961910087-03, 961910087-04, 961930096-03, 961930096-04, 961930096-05, 961930096-06, 970468501-00, 970468501-01, 970468601-00, 970528602-00, 670468601-01, 970528601-00), ST224P (961930122-04, 961930122- 03, 961930122-01), ST227 (970528702-00) ST227P (961930097-06, 961930097-05, 961930097-04, 961910088-05, 961910088-04, 961910088-03), ST230 (961910090-02), ST230P (961910015-00, 961910090-03, 961910090-04, 96191009-05, 961930101-03, 961930101-04, 961930101-05, 961930101-06) 592XP, 592XPG | Drive Cable | 582519002 |
| ST224 (961910087-01, 961930096-02), ST224P (961930122-00), ST227P (961930097- 03, 961930097-02), ST230P (961910090-01, 961930101-02) ST227P (961910088-01) | Drive Cable | 587428701 |
| ST424, ST424T, ST427, ST427T, ST430, ST430T | Drive Cable | 589289801 |
| ST124 | Drive Cable | 596014901 |
Drive Belt:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224 (970468501-00, 970468501-01, 970468601-00, 970528602-00, 970468601-01, 970528601-00) ST227 (970469001-00, 970528702-00, 970468901-01, 970468901-00) ST324 (970469301-00, 970468801-00) | Drive Belt | 582640701 |
| ST230 (970528802-00, 970469201-00, 970469101-00) ST327 (970469501-00, 970529002-00, 970469401-00, 961930127-00, 961930127-01, 961930127-00, 961930124-01, 961930124-00) ST330 ( 970469701-01, 970529102-00, 970469701-00, 970469601-00, 961930128-01, 961930128-00, 961930125-01, 961930125-00) | Drive Belt | 582640702 |
| ST224 (961910087-01, 961910087-02, 961910087-03, 961910087-04, 961910087-05, 961930096-02, 961930096-03, 961930096-04, 961930096-05, 961960096-06, 961910087-00, 961930096-01) ST224P (961930122-04, 961930122-03, 961930122-01, 961930122-00) ST227P (961930097-06, 961930097-05, 961930097-04, 961930097-03, 961930097-02, 961930097-01, 961910088-05, 961910088-04, 961910088-03, 961910088-02, 961910088-01, 961910088-00) ST324 (961930126-01, 961930126-00, 961930123-01, 970528902-00, 961930123-00) 572XP, 365, 372XP, 390XP, 572XPG | Drive Belt | 584216102 |
| ST230P | Drive Belt | 585829902 |
| ST424, ST424T, ST427, ST427T, ST430, ST430T 592XP, 592XPG |
Drive Belt | 589290601 |
| ST124 | Drive Belt | 596013401 |
Impeller Belt:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST324 | Impeller Belt | 501818201 |
| ST230 (970528802-00, 970469201-00, 970469101-00) ST230P (961910015-00, 9619100900-04, 961910090-05, 961930101-03, 961930101-04, 961930101-05, 961930101-06) ST | Impeller Belt | 501818202 |
| ST230P (961910090-00, 961910090-01, 961910090-02, 961910090-03, 961930101-01, 961930101-02) 572XP, 365, 372XP, 390XP, 572XPG | Impeller Belt | 584216102 |
| ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T | Impeller Belt | 589262602 |
| ST124 | Impeller Belt | 595924701 |
Sheer Bolts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424 ST424T, ST427T, ST430T |
Sheer Bolts | 588077502 |
| ST124 | Sheer Bolts | 595920901 |
Sheer Nuts:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424 ST424T, ST427T, ST430T |
Sheer Nuts | 595086601 |
| ST124 | Sheer Nuts | 595920901 |
Idler Pulley (Drive):
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224 (970468501-01, 970528602-00, 970468601-01 970528601-00), ST227, ST230 (970528802-00, 970569201-00, 970469101-00) ST324, ST327 | Idler Pulley (Drive) | 581141402 |
| ST424 (961930129-01, 961930102-00), ST424T (961930132-02, 961930132-01) | Idler Pulley (Drive) | 589262702 |
| ST224 (961910087-01, 961910087-02, 961910087-03, 961910087-04, 961910087-05, 961930096-02, 961930096-03, 961930096-04, 961930096-05, 961930096-06, 970468501-00, 970468601-00, 961910087-00, 961930096-01,) ST224P (961930122- 04, 961930122-03, 961930122-01, 961930122-00) ST227P (96193009706, 961930097- 05, 961930097-04, 961930097-03, 961930097-02, 961930097-01, 961910088-05, 961910088-04, 961910088-03, 961910088-02, 961910088-01, 961910088-00), ST230P (961910015-00, 961910090-00, 961910090-01, 961910090-02, 961910090-03, 961910090-04, 961910090-05, 961930101-01, 961930101-02, 961930101-03, 961930101-04, 961930101-05, 961930101-06), ST327 (961930124-00), ST330 (970469701-01, 9705829102-00, 970469701-00, 970469601-00, 961930128-01, 961930128-00, 961930125-01, 961930125-00) 572XP, 365, 372XP, 390XP, 572XPG | Idler Pulley (Drive) | 586880202 |
| ST427 (970529401-00, 961930130-01, 961930103-00, 970529301-00), ST427T (970529501-00, 961930133-02, 961930133-01) ST430 (970529601-00, 961930131-01, 961930104-00) | Idler Pulley (Drive) | 589262702 |
| ST124 | Idler Pulley (Drive) | 596015301 |
Idler Pulley (Impeller):
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST327 (961930124-00) | Idler Pulley | 581141402 |
| ST224 (970468501-00, 970468501-01, 970468601-00) | Idler Pulley | 586880202 |
| ST324, ST327, ST330, ST424, ST424T, ST427, ST427T, ST430, ST430T 572XP, 365, 372XP, 390XP, 572XPG | Idler Pulley | 589262702 |
| ST124 | Idler Pulley | 595924601 |
Tensioning Springs(Eng Drive):
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330 | Tensioning Springs | 580753001 |
| ST424, ST424T, ST427, ST427T, ST430, ST430T | Tensioning Springs | 589263701 |
| ST124 | Tensioning Springs | 596015301 |
Tensioning Springs (Impeller):
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P | Tensioning Springs | 587031201 |
| 395XP | Tensioning Springs | 952030249 |
| ST324, ST327, ST330 | Tensioning Springs | 589263701 |
Tensioning Springs (Drive):
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224 (970468501-00, 970468501-01, 970468601-00, 970528602-00, 970468601-01) ST224P, ST227, ST227P,ST230, ST230P, ST324, ST327, ST330 | Tensioning Springs | 585263801 |
| ST424, ST424T, ST427, ST427T, ST430, ST430T | Tensioning Springs | 589263701 |
| ST124 | Tensioning Springs | N/A |
Friction Wheels:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, , ST230 ( 970528802-00) ST227P, ST230P, ST327(961930127-01, 961930124-00), ST330 | Friction Wheels | 581091101 |
| ST224 (970468501-01, 970468601-01) ST230P (961910090-05), ST227, ST227P (961910088-05, 961930097-06)ST324, ST327, ST230 (970469201-00, 970469101-00) | Friction Wheels | 597362801 |
| ST124 | Friction Wheels | 595926501 |
Chute Rotator Cable:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230 (970528802-00), ST324, ST327, ST330 | Chute Rotator Cable |
598803401 |
| ST230, ST230P | Chute Rotator Cable |
593853401 |
| ST424, ST424T, ST427, ST424T, ST430, ST430T | Chute Rotator Cable |
529534501 |
Chute Deflector Cable:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224 (961910087-01, 961910087-02, 961930096-02, 961930096-03, 961910087-00, 961930096-01) ST224P (961930122-01, 961930122-00), ST227P (961930097-03, 961930097-02, 961930097-01, 961910088-02, 961910088-01, 961910088-00), ST230 | Chute Rotator Cable |
586961501 |
| ST224 (961910087-03, 961910087-04, 961910087-05, 961930096-04, 961930096-05, 961930096-06), ST224P (961930122-04, 961930122-03), ST227P (961930097-06, 961930097-05, 961930097-04, 961910088-05, 961910088-04, 961910088-03) ST230P, ST324, ST327, ST330, ST424 | Chute Rotator Cable |
590587002 |
| ST224 (970468501-00, 970468501-01, 970468601-00, 970528602-00, 970468601-01, 970528601-00) ST227, ST324 (970469301-01, 970468801-00) ST424T, ST427, ST427T, ST430, ST430T | Chute Rotator Cable |
598450501 |
Deflector Spring:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424 ST424T, ST427T, ST430, ST430T | Chute Rotator Cable |
532184505 |
Safety Key:
| Model Fit up | Part Type | Part # |
|---|---|---|
| ST224, ST224P, ST227, ST227P, ST230, ST230P, ST324, ST327, ST330, ST424 ST424T, ST427T, ST430, ST430T | Chute Rotator Cable |
532443059 |
| ST124 | Chute Rotator Cable |
596018201 |
Cant find the parts you are looking for?. Use our Husqvarna Parts Lookup Diagrams
