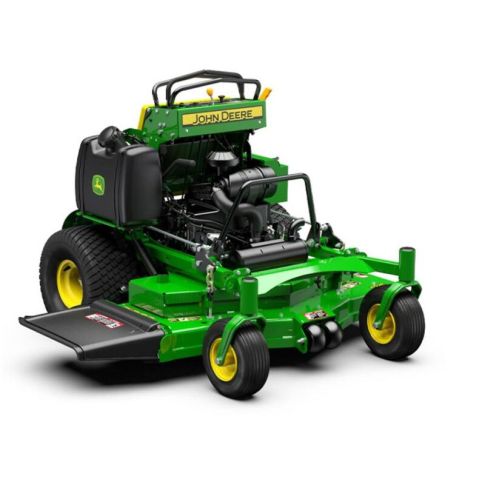

John Deere 652R EFI 52" Quik Trak™ Stand-On Mower

John Deere
SKU
652REFI52

***John Deere products are only available for in store pick up. We do not ship John Deere products***

***Base Machine Suggested List Price Does Not Include $400 USD Destination Charge***

$14,144.00
In-Store Pickup Only

QuikTrak™ Stand-On Mower

Key Features
  • Compact design for easy hauling
  • Hydrostatic drive system
  • Commercial-quality engine
  • Easy to maintain
Key Specs
  • Engine Manufacturer/model: ECV740 EFI
  • Engine Power: Gross at 3,600 rpm: 20 hp / 18.6 kW
  • Fuel tank capacity: 5.6 U.S. gal. / 21.2 L
  • Mower deck Size: 52 in. / 132 cm
  • Blade tip speed: 18,900 fpm / 5,761 m/min
  • Transmission: Hydrostatic
  • Speed range: 0-9.5 mph / 0-15.3 km/h
  • Drive wheels: 20x10-8 Turf Master
  • Caster wheels: 13x6.5-6
  • Warranty: 24 months
Engine
  • Manufacturer/Model: ECV740 EFI
  • Power: Gross at 3,600 rpm: 20 hp / 18.6 kW
  • Displacement: 45.6 cu in. / 747 cc
  • Cylinders: Two, V-twin
  • Oil filter: Full flow, replaceable
  • Lubrication: Full pressure
  • Cooling: Forced air
  • Air cleaner: Heavy-duty canister with safety element
Fuel System
  • Fuel type: Gasoline, electronic fuel injection
  • Fuel tank capacity: 5.6 U.S. gal. / 21.2 L
  • Fuel tank switch/shut-off valve: Yes
Electrical System
  • Charge system: At 3,600 rpm, 20 amp
  • Battery voltage: 12 V
  • Hour meter: Digital
  • Operator presence starting system: Yes
Drivetrain
  • Transmission: Hydrostatic
  • Hydraulic pumps: Hydro-Gear with fans, 0.73 cu in. / 12 cc
  • Wheel motors: Hydro-Gear, 15 cu in. / 246 cc
  • Travel speed: Speed range / 0-9.5 mph / 0-15.3 km/h / Forward / 0-9.5 mph / 0-15.3 km/h / Reverse / 0-5.5 mph / 0-8.9 km/h
  • Speed and direction control: Twin hand-controlled levers
  • Hydraulic capacity: With filter-wet, 2.9 qt / 2.7 L / Dry, 5 qt / 4.7 L
  • Filter: Spin-on replaceable
Buyer's Note
  • Warranty: 24 months
Tires
  • Drive wheels: 20x10-8 Turf Master
  • Load rating: 4 PR
Brakes
  • Dynamic braking: Dual hand-controlled levers
  • Park brake: Tire engagement
  • Park brake actuation: Hand lever
PTO
  • Type: Electro-Magnetic with brake, 200 lb.-ft / 271 Nm
  • Drive: Dual B-section V-belt with Kevlar® cord
Mower Decks
  • Size: 52 in. / 132 cm
  • Deck construction: Fabricated steel, floating mount system
  • Deck thickness: 7 gauge / 0.18 in. / 4.6 mm
  • Discharge: Side
  • Height-of-cut range: Increments / 0.25 in. / 0.64 cm / 1.5-5 in. / 3.8-12.7 cm
  • Cutting width: 52 in. / 132 cm
Blades
  • Blade tip speed: 18,900 fpm / 5,761 m/min
  • Number: Three
Wheels
  • Caster wheel type: No-flat semi-pneumatic with sealed bearings
  • Caster wheels: 13x6.5-6
  • Front anti-scalp rollers: Center, left
Dimensions
  • Length: 66 in. / 167.6 cm
  • Width: Deflector down, 66 in. / 167.6 cm
  • Height: 47 in. / 119 cm
  • Weight: 927 lb. / 420.5 kg
More Information
ManufacturerJohn Deere
Item ReturnsThis item can be returned
