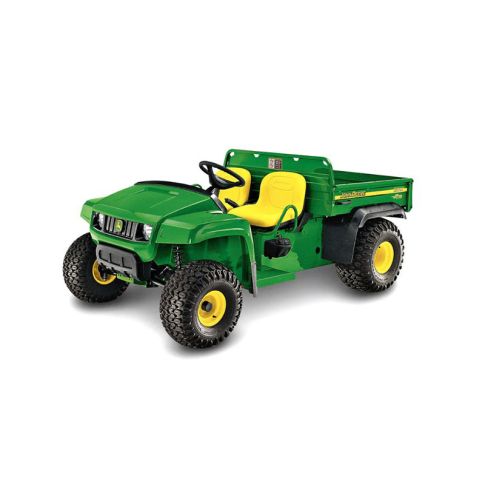

John Deere TS 4x2 Gator Traditional Utility Vehicle

John Deere TS4x2 Gator Traditional Utility Vehicle

John Deere TS4x2 Gator Traditional Utility Vehicle includes:

• Large, durable cargo box for heavy hauling
• Precision-engineered drive system
• John Deere TS4x2 Vehicle features operating conveniences such as cushioned bucket seating, cup holders, 12-V outlet, glove box, and fuel gauge

	John Deere Gator Traditional Utility Vehicle TS 4x2
KEY SPECS
Engine power	10.1* kW13.5 hp
Cargo box dimensions	100.3 x 124.5 x 22.9 cm39.5 x 49 x 9 in.
Cargo box capacity	227 kg500 lb
Towing capacity	408 kg900 lb
Front suspension	Independent spring over shock, single A-arm
Rear suspension	Two high-floatation, low pressure tires (solid axles)
Final drive	Fully enclosed; oil bath
Four wheel drive	No
Fuel capacity	5 g
ENGINE
Type	4-cycle gas
Displacement	400 cc24.4 cu in.
Power	10.1* kW13.5 hp
Cooling system	Air
DRIVETRAIN
Transmission	Continuously variable transmission (CVT)
Final drive	Fully enclosed; oil bath
Four wheel drive	No
Traction assist	Mechanically Activated Differential Lock
Descent control	No
SUSPENSION
Front	Independent spring over shock, single A-arm
Rear	Two high-floatation, low pressure tires (solid axles)
BRAKES
Type	Wet disk in transaxle
Park brake	Wet disk, hand operated
TIRES
Front	Two 22.5x10.00-8, 2 PR hi-flotation
Rear	Two 25x12.00-9, 2 PR hi-flotation
DIMENSIONS / CAPACITIES
Wheelbase	1770 mm69.7 in.
Front tread centers	1270 mm50 in.
Rear tread centers	1220 mm48 in.
Vehicle weight	415 kg915 lb
Height	1108 mm43.6 in.
Width	1525 mm60 in.
Length	104 in.
Ground clearance	6.0 (under transaxle) in.9.8 (foot platform) in.
Fuel capacity	5 g
Cargo box dimensions	100.3 x 124.5 x 22.9 cm39.5 x 49 x 9 in.
Cargo box capacity	227 kg500 lb
Payload capacity	408 kg900 lb
Towing capacity	408 kg900 lb
Hitch	1.25in hitch is available as an option (BM23839)
FEATURES
Color	Green/Yellow
Power steering	No
Battery	340 @ -18 C (0 F) CCA
Alternator	16.6 @ 3700 rpm (regulated) amp
Instrumentation	Fuel Gauge, Hour Meter listed in the Sales Manual
Storage	Cup Holder, Glovebox
Seating	Bucket Seats
ADDITIONAL INFORMATION
Country of Manufacture	U.S.
