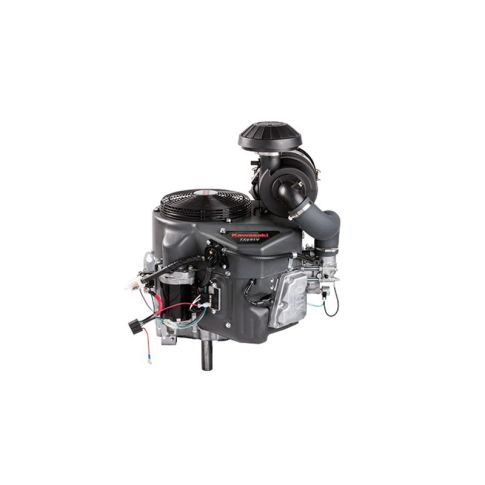

Kawaski FX691V-ES14-S 22 HP Vertical Engine

FX SERIES

Major power and commercial-grade strength are on tap from the Kawasaki FX Series engines. When you’re looking for power for your mower or heavy duty industrial and construction equipment, you’ll find it here. All FX engines are Critical Power SAE-Certified, compact, 90-degree V-twin engines. Every one features hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation.

• Overhead v-valve
• 90° V-twin
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Rotating metal grass chopper screen
• Multi-Stage canister air filter
• Cast-iron cylinder liners
• Metal engine cover with integrated clean out ports
• Heavy duty shift-type starter

Specifications

• Displacement: 726 cc (44.3 cu. in.)
• Number of Cylinders: 2
• Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm)
• Compression Ratio: 8.2:1
• Oil capacity w/filter: 2.2 U.S. qt. (2.1 L)
• Maximum Power: 22.0 hp (16.4 kW) at 3,600 rpm
• Maximum Torque: 39.4 ft. lb. (53.4 N·m) at 2,200 rpm
• Dry Weight: 101.4 lb. (46.0 kg)
